Lightweight intelligent arc additive manufacturing system
As the world's first mini integrated intelligent arc additive manufacturing system, the ArcMan S series, under the guidance of IungoPNT additive software, uses a flexible six-axis robot with ultra-high stability fuse power supply to achieve high-performance, high-efficiency, and cost-effective intelligent additive manufacturing of small and medium-sized metal components. It is also equipped with a molten pool monitoring system, process printing data monitoring, environmental temperature and humidity monitoring, and an integrated smoke exhaust and dust removal system. From teaching and training, material development, design and development to manufacturing and production, whether you have rich experience in arc additive or not, you can "think" in the morning and "enjoy" in the evening.

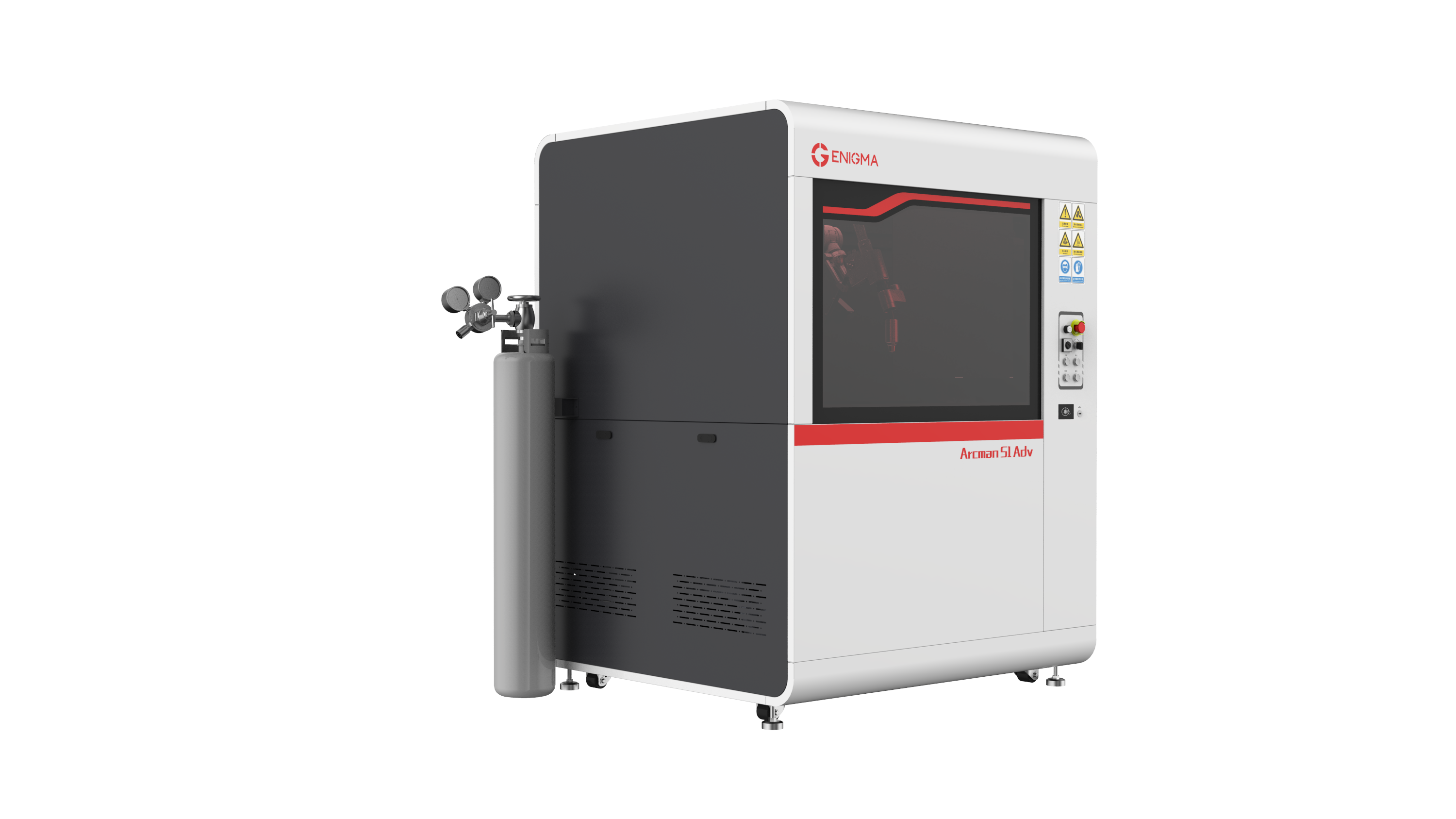

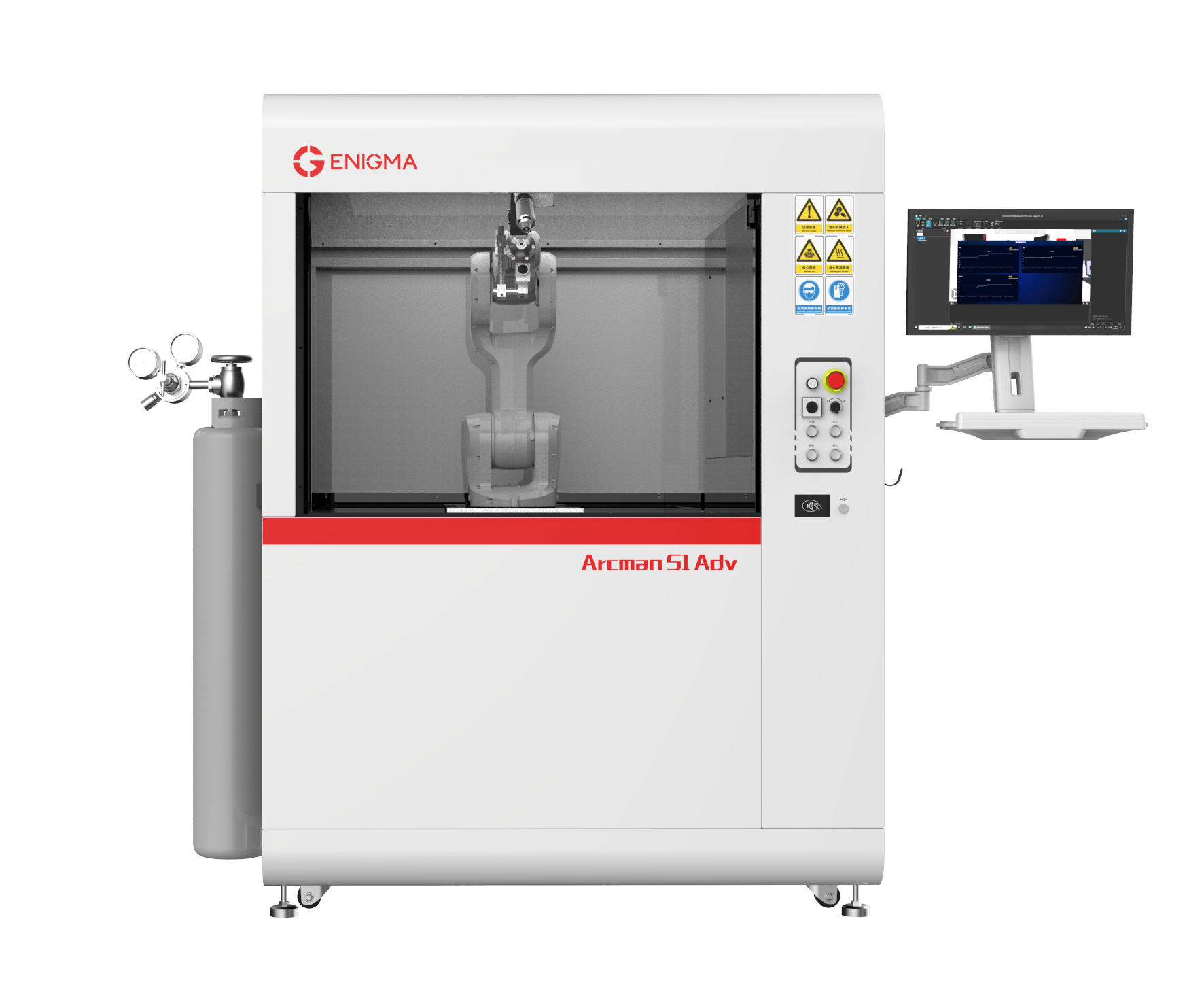

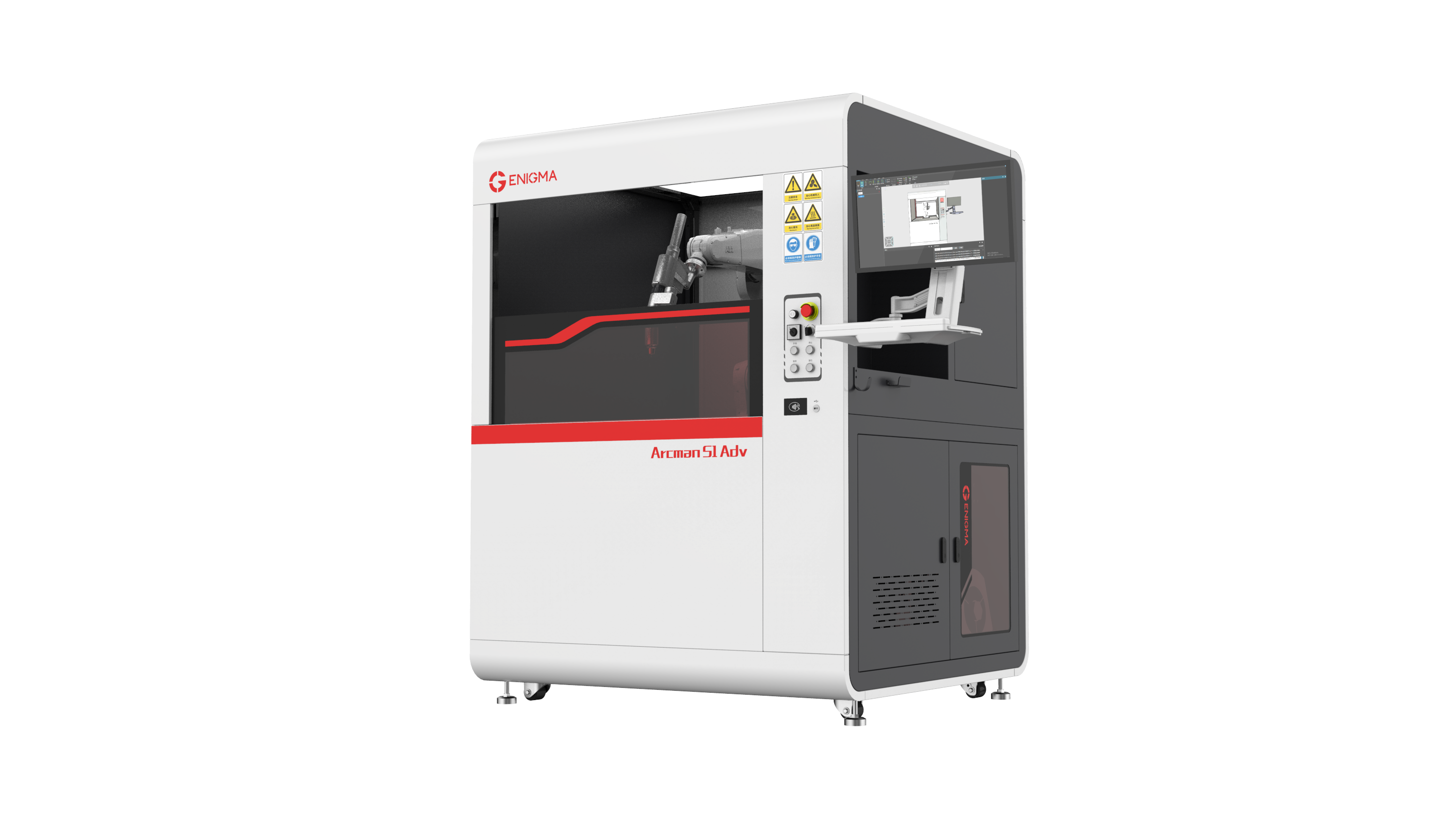

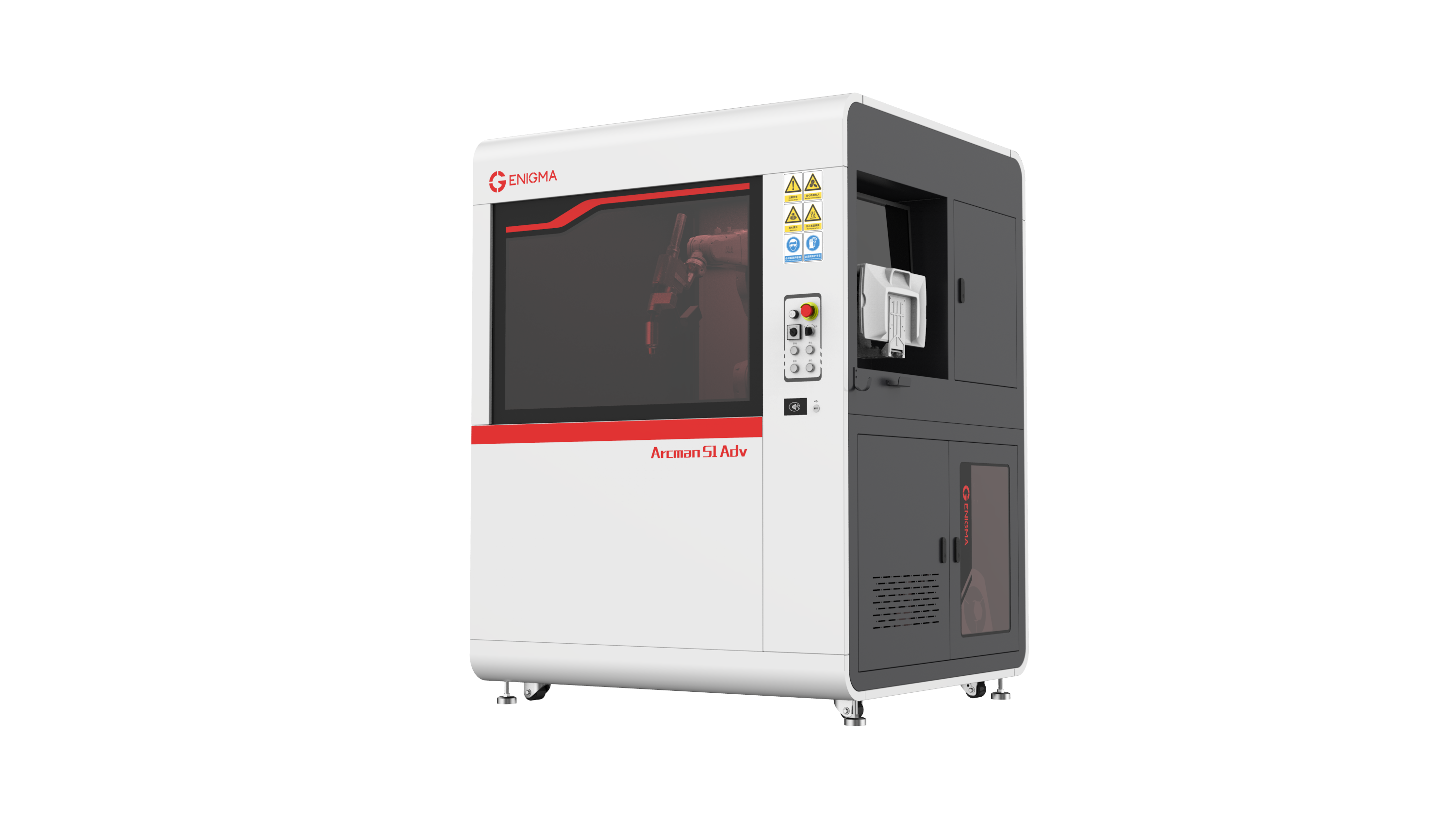

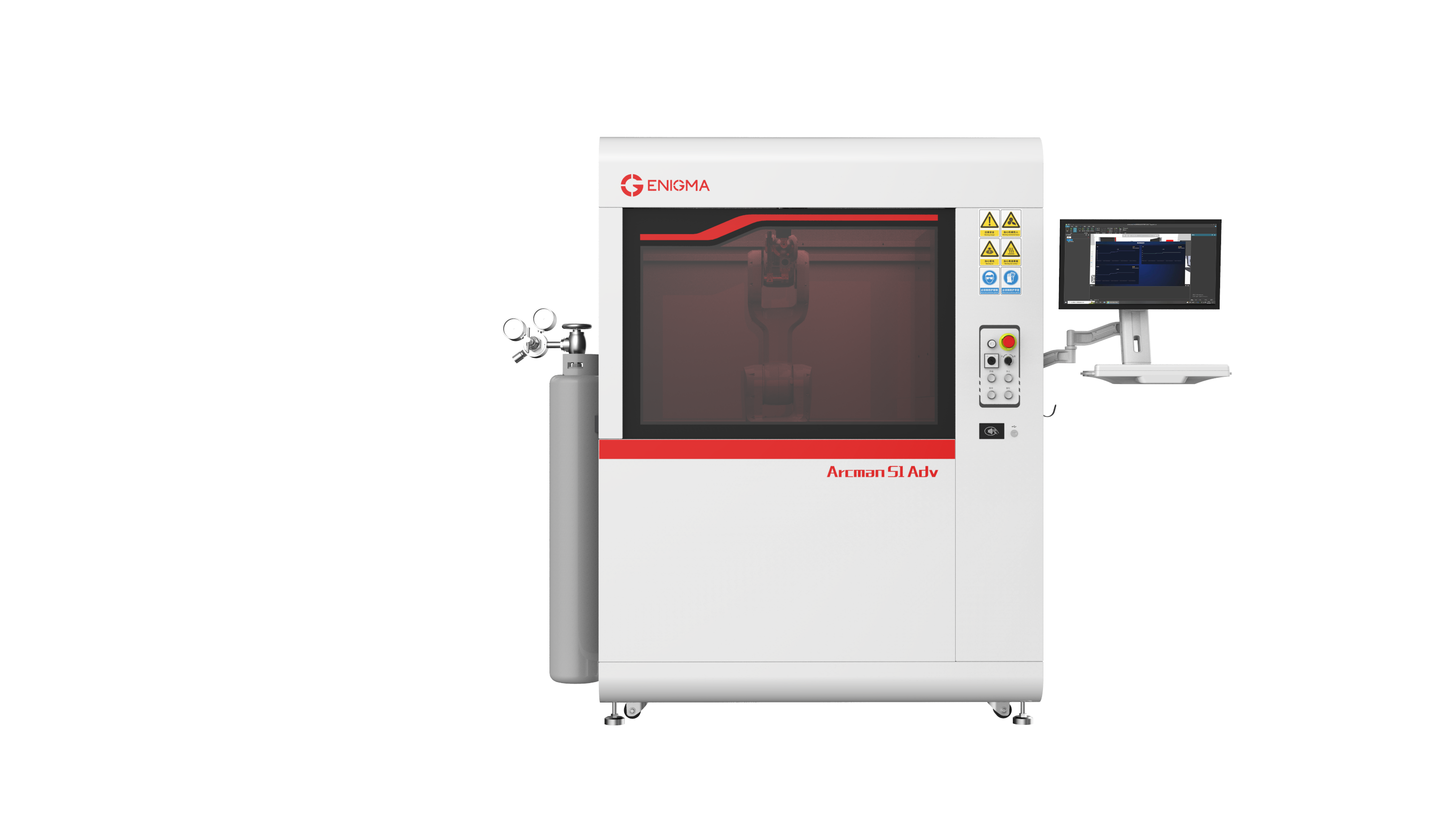

| ArcMan S1 Adv | |
| Applicable materials | aluminum alloy/magnesium alloy/copper alloy/stainless steel/carbon steel (other weldable materials-welding wire) |
| Application fields | vocational education, material research, skill competition, etc. |
| Forming range | 800*500*500mm (can be reached at different times) |
| Equipment size | about 1500*1400*2000mm |
| Fuse power supply | TPS 4000 CMT Adv |
| Actuator | IRB 1200-5/0.9 |
| Configuration software | IungoPNT V3.0 |
| ArcMan S1 Basic | |
| Applicable materials | aluminum alloy/magnesium alloy/copper alloy/stainless steel/carbon steel (other weldable materials-welding wire) |
| Application fields | vocational education, material research, skill competition, etc. |
| Forming range | 700*500*450mm (can be reached at different times) |
| Equipment size | about 1500*1400*2000mm |
| Fuse power supply | Customized domestic welding power supply (ENIGMA) |
| Actuator | JAKA Zu7 |
| Configuration software | IungoPNT V3.0 |
Lightweight Intelligent Arc Additive Manufacturing System
As the world's first mini all-in-one intelligent arc additive manufacturing system, the ArcMan S series, under the guidance of IungoPNT additive software, uses a flexible six-axis robot with ultra-high stability fuse power supply to achieve high-performance, high-efficiency, and cost-effective intelligent additive manufacturing of small and medium-sized metal components. It is also equipped with a molten pool monitoring system, process printing data monitoring, environmental temperature and humidity monitoring, and an integrated smoke exhaust and dust removal system. From teaching and training, material development, design and development to manufacturing and production, whether you have rich experience in arc additive or not, you can "think" and "enjoy" it in the morning and evening.
Strong Applicability
Widely used in material development, innovative application development, teaching practice, product proofing/production, product repair and other scenarios; types of additive materials include aluminum alloy, magnesium alloy, high temperature alloy, cemented carbide, cobalt-chromium alloy, nickel-based alloy, copper alloy, stainless steel, steel, etc.
Intelligent
Equipped with IungoPNT software developed specifically for arc additive, it is more suitable for the proprietary slicing method and filling path planning of arc additive, and realizes additive quality control based on graphic optimization; combined with the characteristics of arc additive process, it intelligently optimizes the additive program for the entire workpiece and special feature positions to reduce the generation of printing defects.
High Quality, High Efficiency, Low Cost
Equipped with the independently designed and customized WeldWand series PlusMIG welding gun, it ensures the stability of the printing process and improves the printing accuracy. The minimum printing thickness of stainless steel can reach 2mm; the equipment has high molding efficiency, and the molding efficiency of the process library with its own parameters can reach up to 1085cm³/h; the cost of consumables is low, and some are as low as 7-8 yuan/kg.
Process visualization
Through extremely high-reduction layout simulation and dynamic path simulation, the printing process is dynamically displayed, 360-degree non-dead-angle speed change viewing, and offline verification of accessibility and singular points in advance, rejecting "blind typing" and improving printing efficiency.
Convenience and lightweight
The equipment occupies a small area, and the weight of the whole machine is only 1T. The operator can easily push the equipment to the appropriate operating position and fix it. No additional auxiliary facilities and site installation requirements are required. Quick deployment can be completed by connecting the power supply and protective gas.
Easy to use and friendly human-computer interaction
Simple operation, equipped with IungoPNT, a special CAM software for arc additive, only six steps are required to achieve additive; one-button button start, closed-loop software control, simple and convenient.
Safety protection

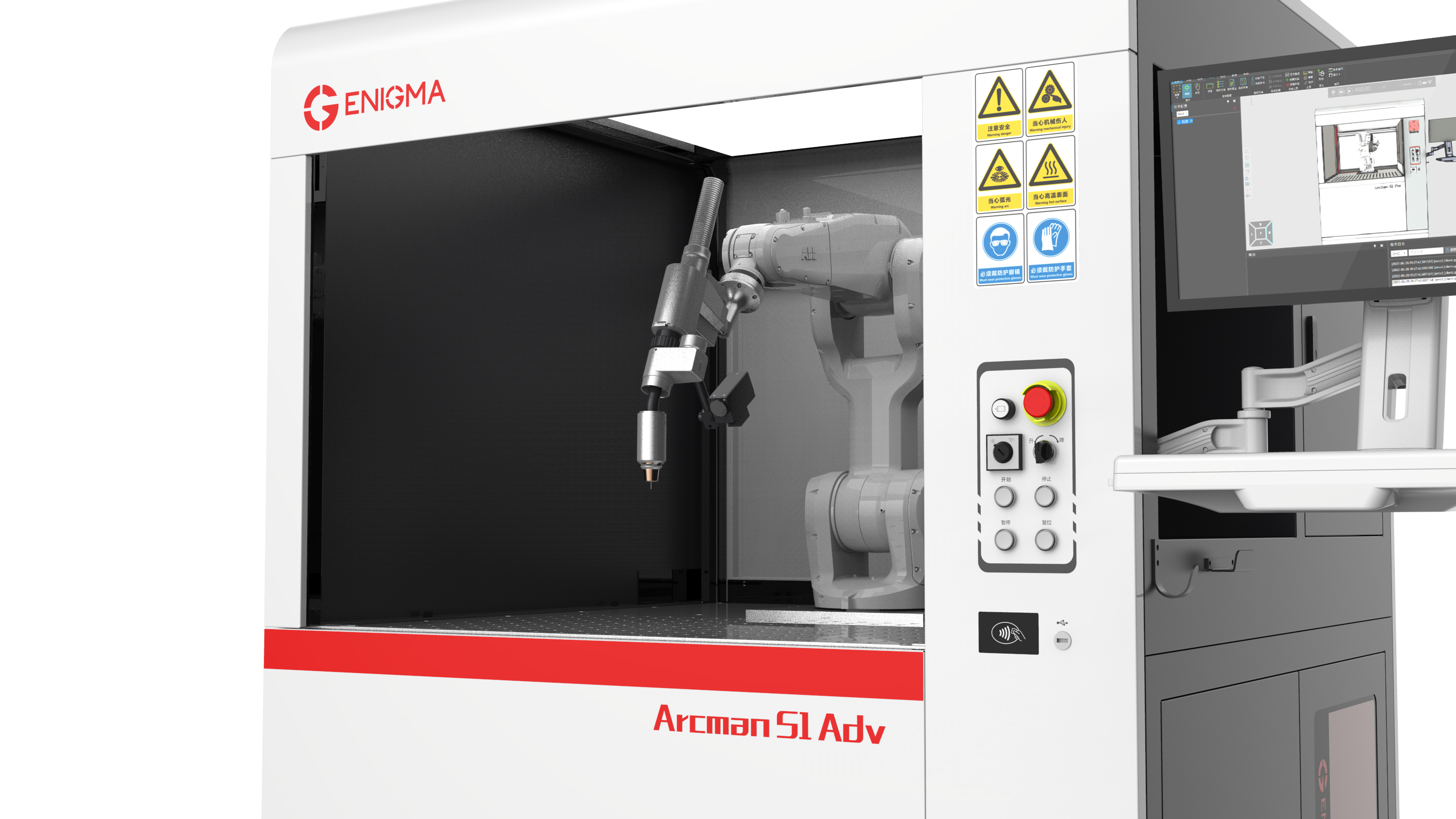

The equipment has an integrated protective shell, equipped with an arc-proof and noise-reducing lifting observation door to isolate arc light and noise damage; equipped with a molten pool camera, the molten pool and arc status can be clearly viewed through the display; equipped with a smoke filter system to prevent smoke from damaging human respiratory health.
