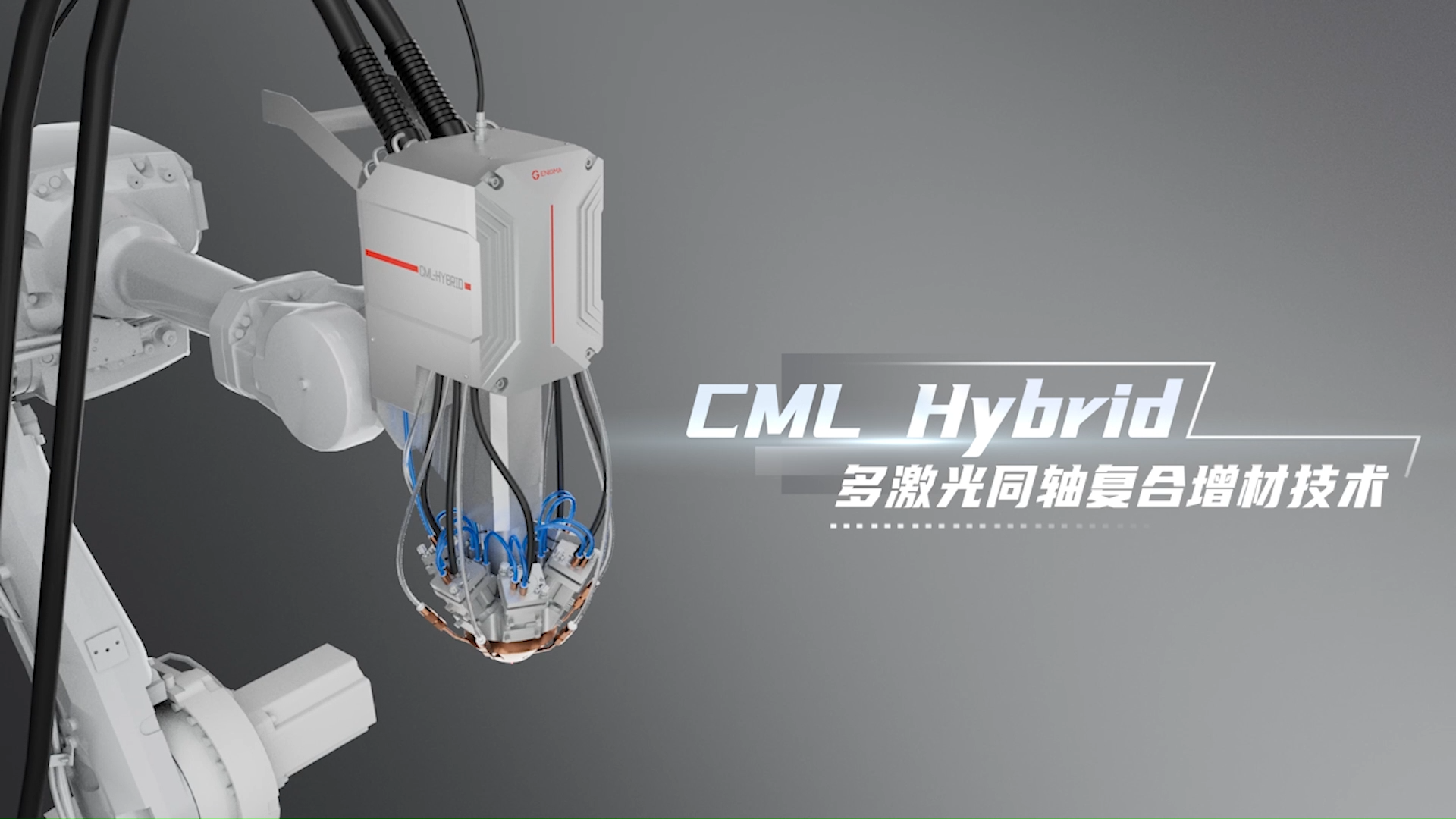

CML Hybrid Solutions | Nanjing Enigma Automation

Definition

CML Hybrid multi-laser coaxial composite technology can realize triple composite technologies including multi-wavelength laser composite, laser arc composite, and wire powder composite. It is suitable for frontier research directions of DED technology such as variable component gradient materials, in-situ alloying additives, high-throughput material preparation, and microstructure regulation. At the same time, it can meet the engineering application requirements of DED technology such as improving the compatibility of additive materials, additive efficiency, component accuracy, performance, and complexity.

Technical features

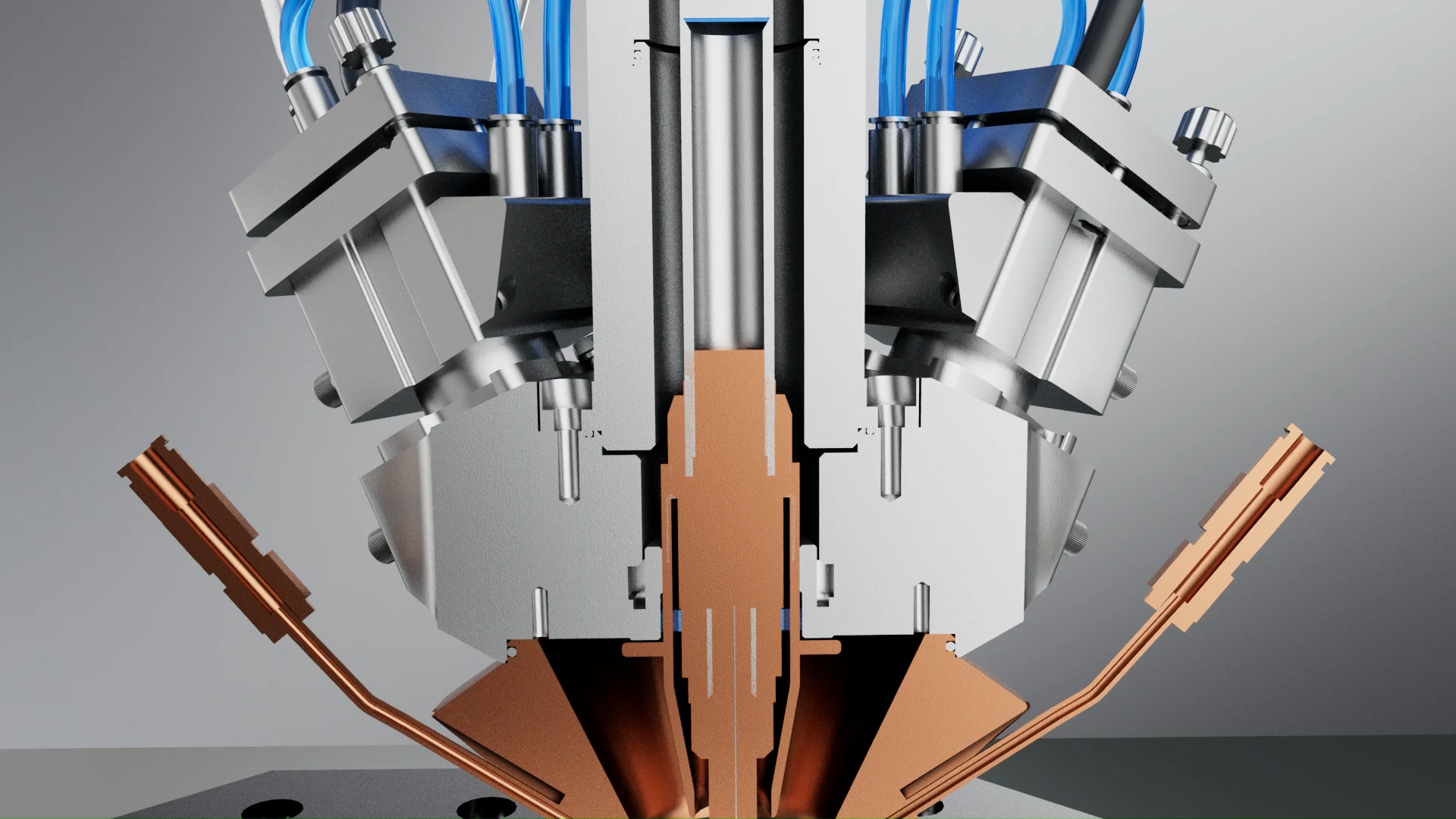

Laser and wire coaxial compounding, good uniformity of forming in all directions, improving component performance and reducing the impact of complex additive paths

Independently controllable multi-wavelength laser compounding to improve material compatibility

Independently controllable laser arc compounding to improve additive efficiency, component performance and structural complexity

Independently controllable wire and powder co-delivery, suitable for variable component gradient materials and in-situ alloying additives, to achieve high-throughput experimental material preparation

Main functions

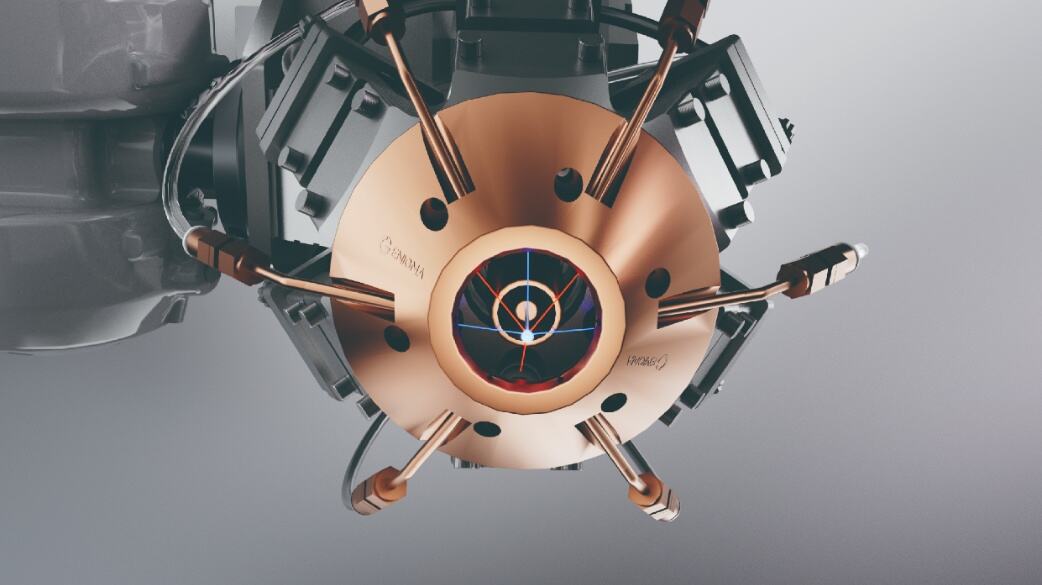

Multi-wavelength laser coaxial compounding

Six independently controlled laser modules realize multi-wavelength laser coaxial compounding through commonly used combinations such as red and blue laser compounding, which expands the applicable range of materials and improves the absorption rate of highly reflective metal materials such as copper and aluminum, while taking into account economy; the six laser beams can independently adjust parameters and directions, and can achieve a variety of spatial energy distributions within the working range to further meet special process requirements.

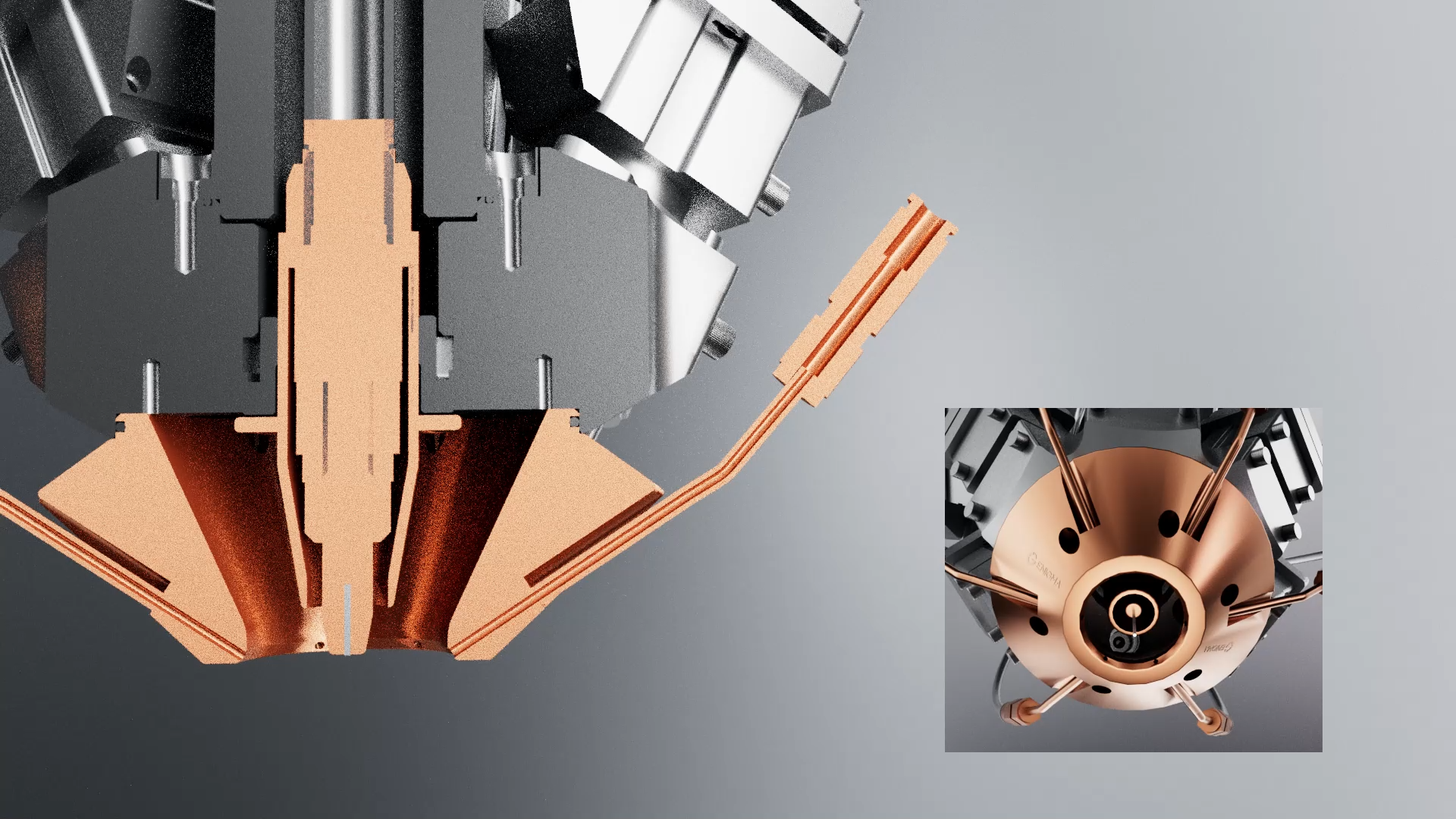

Laser arc coaxial compounding

The independently controllable laser arc heat source is used in combination to improve the efficiency of additive manufacturing and component performance; the two processes are used alternately in different areas on the same workpiece, combined with the accuracy of the laser and the efficiency of the arc, which is suitable for the additive manufacturing of large metal components with more complex structures, and achieves overall high efficiency and high quality.

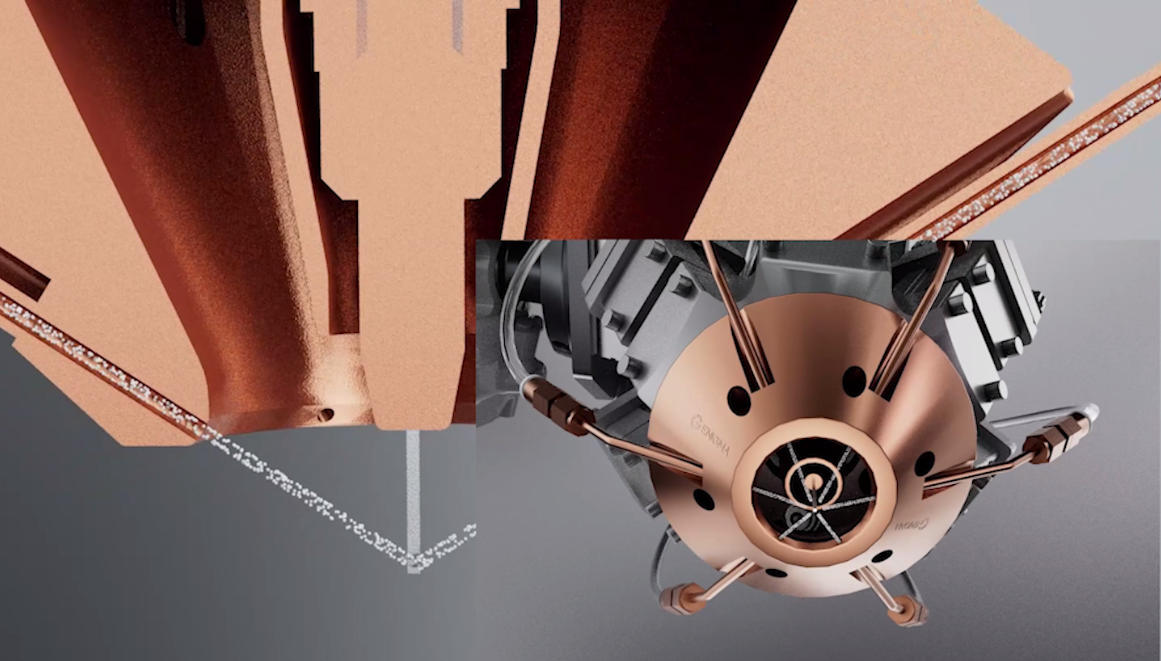

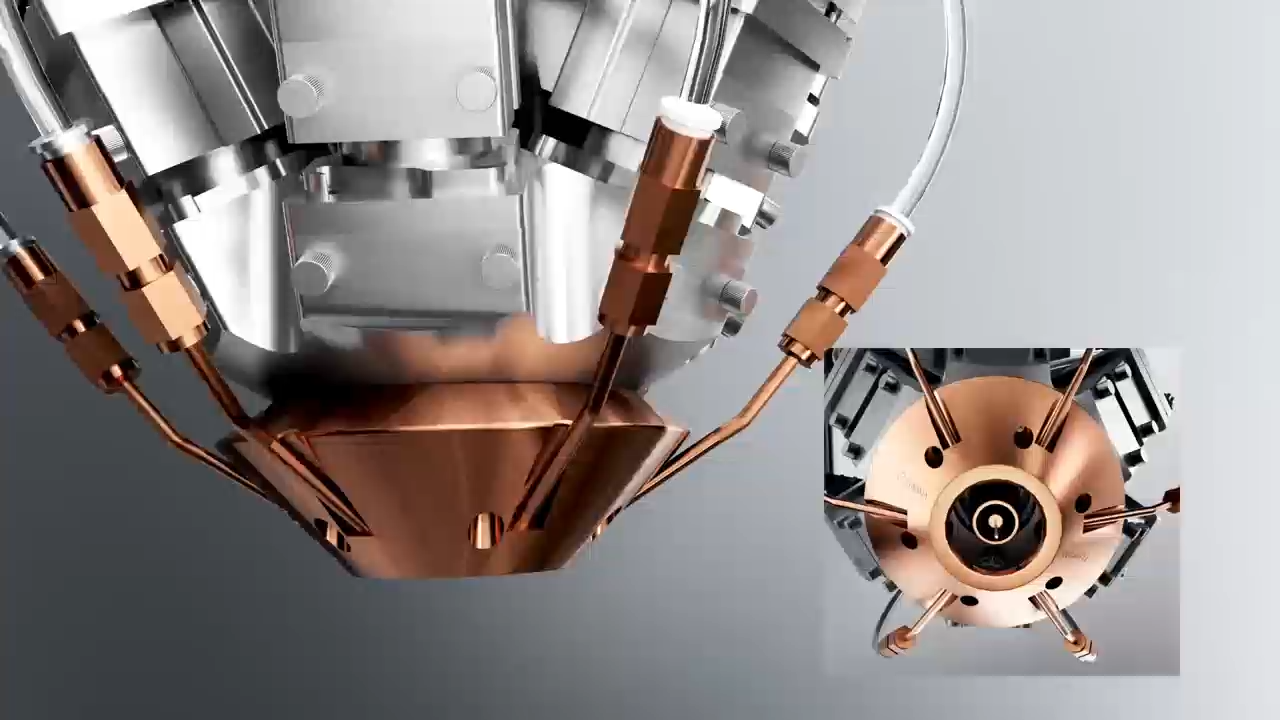

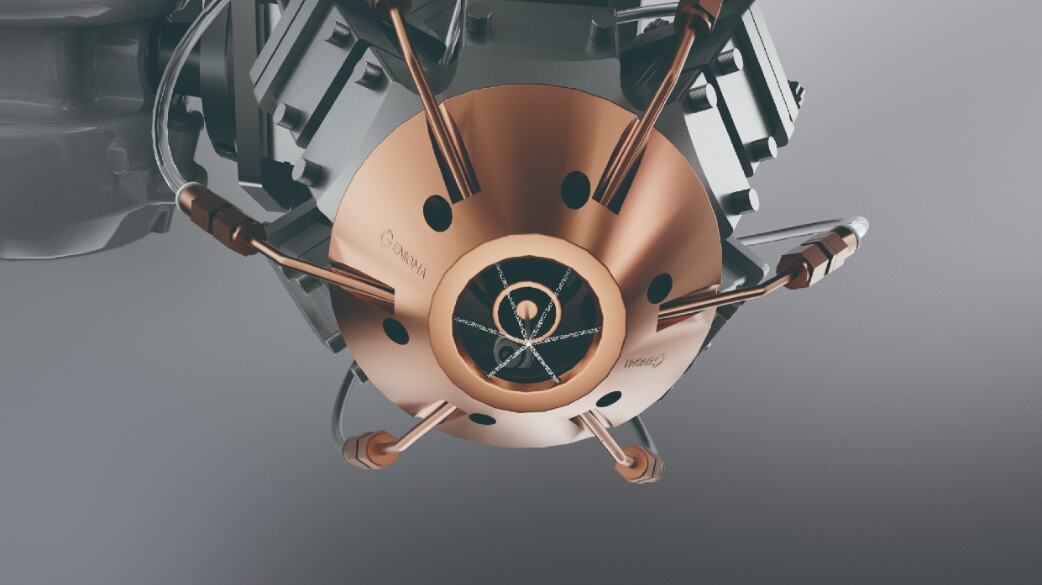

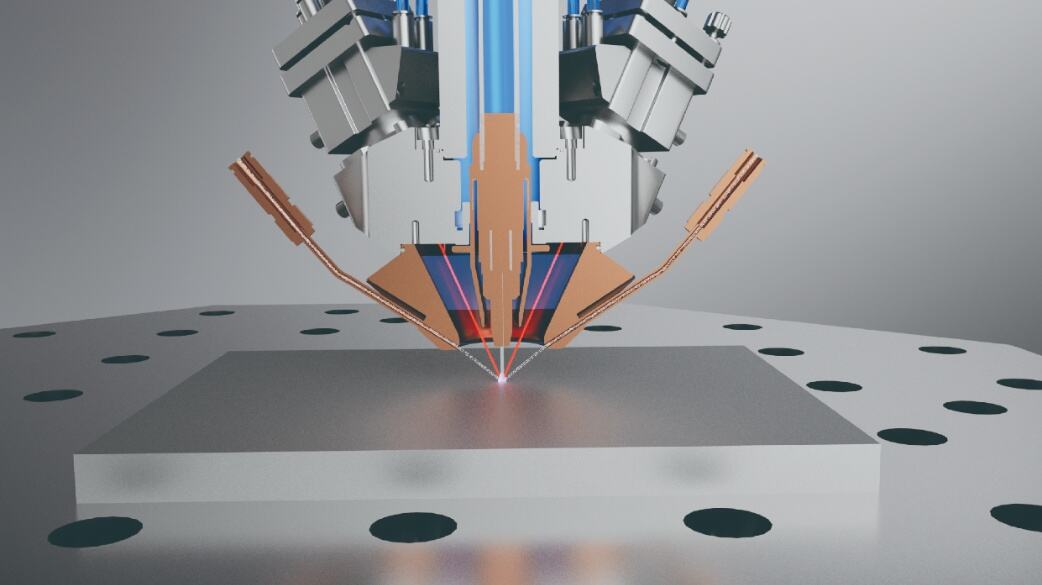

Wire powder coaxial compounding

The combination of wire feeding and 6 completely independent powder feeding paths realizes independently controllable wire-powder feeding and high-degree-of-freedom material ratio adjustment. It can be used for the rapid development of variable component gradient materials, nanoparticle reinforcements and other materials, and meet the high-throughput preparation needs of new material development.

Technical advantages

Triple composite capability and strong technical compatibility

Integrate multi-wavelength laser, laser arc, and wire powder triple composite technology to form a full-range composite system, which can flexibly adapt to different material forms (wire/powder) and energy sources (laser/arc) requirements, breaking through the limitations of a single composite mode.
Covering cutting-edge research and leading technological exploration

Accurately matching the cutting-edge research direction of DED technology, supporting cutting-edge fields such as variable component gradient material preparation, in-situ alloying additives, high-throughput material research and development, and microstructure regulation, providing core tools for cross-research on materials science and additive manufacturing.
Meet engineering needs and improve full-chain performance

Achieve multi-dimensional upgrades in engineering applications - improve additive material compatibility (adapt to more material types), additive efficiency (accelerate the manufacturing process), component accuracy (optimize forming quality), mechanical properties (enhance component reliability) and structural complexity (support more difficult component manufacturing), and open up a technical closed loop from laboratory research to industrial production.
